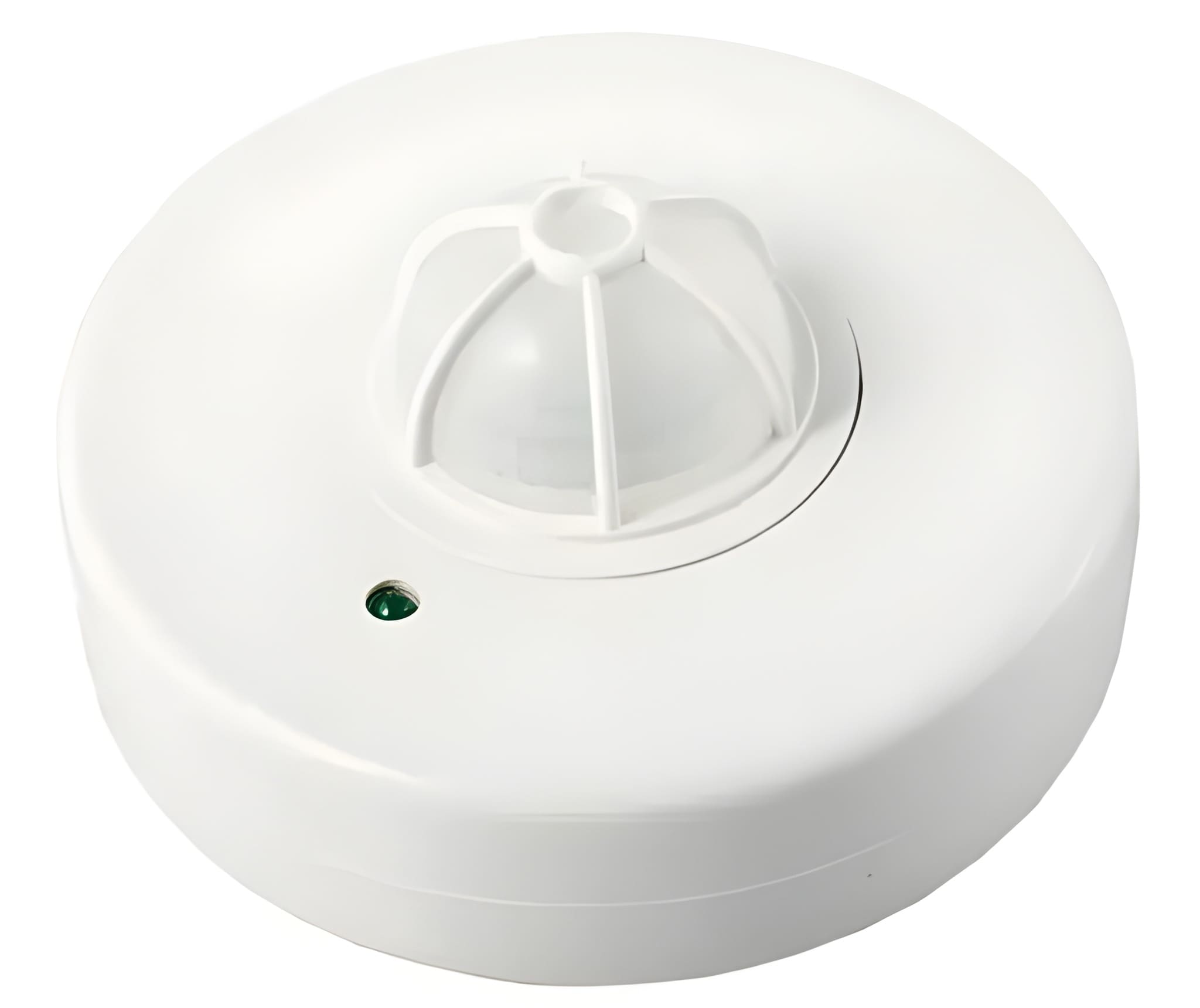

MCE OL06A Surface Mount Sensor
The MCE OL06A is a ceiling-mounted infrared occupancy sensor designed to automatically switch lighting loads up to 1200W or 300W (CFL/LED). It features a 360 degree detection angle with an adjustable range
Key Technical Specifications
- Operating Voltage: 230V
- Detection Area: 360 degree angle with a 3 – 6 m diameter range
- Installation Height: Recommended at 2.2 m to 4m
- Rated Loads: Up to1200 W for incandescent lighting and 300W for fluorescent/LED lighting
- IP Rating: IP20 (Indoor use)
Additional information
| Weight | 0.40 kg |
|---|---|
| Dimensions | 13 × 7 × 14 cm |
| Brand | MCE |
| Color | White |
| Dust resistant | IP20 |
| PIR | 1 |
| Detection Angle | 360 degrees |
